Fox ESS battery installation in Melbourne
Expandable Fox ESS CQ7 battery systems, installed properly — high-spec storage at a sensible price, fitted neatly and compliantly so it lasts as long as the warranty says it should.
Get a Fox ESS quote
Tell us what you have got and we will come back with a fixed price.
The battery
The Fox ESS CQ7 battery system
The CQ7 is a floor-standing stack of 6.96kWh modules — you start with the capacity you need now and add modules later as your household's power use grows. Paired with a matching Fox ESS inverter, it stores your surplus solar the moment you make it and runs the lot from one app.
-
Start where you need to, grow later
A system starts at 13.92kWh (two modules) and scales up to 97.44kWh in a single stack — up to 14 modules in series. Adding capacity later means adding a module, not replacing the system.
-
100% usable capacity
Fox ESS rates the CQ7 at 100% depth of discharge with better than 95% round-trip efficiency. In plain terms: you get to use the capacity you paid for, and very little of your stored solar is lost on the way in and out.
-
The latest models
We install the current-generation CQ7 modules and matching Fox ESS inverters — not older stock being cleared out. You get the specification on the current datasheet, and the warranty that goes with it.
-
Safe chemistry, quiet, outdoor rated
Lithium iron phosphate (LFP) cells. Natural convection cooling — no fans, so it's silent and there's nothing to wear out. IP65 rated with a built-in fire protection function, and certified to IEC 62619 and UN38.3.
Specs
Fox ESS CQ7 specifications
| Module capacity | 6.96 kWh |
|---|---|
| System range | 13.92 – 97.44 kWh (max 14 modules in series) |
| Depth of discharge | 100% |
| Round-trip efficiency | >95% |
| Chemistry | LFP (LiFePO₄) |
| Cooling | Natural convection (no fans) |
| Ingress protection | IP65, indoor or outdoor stand-mounted |
| Certifications | IEC 62619, IEC 61000-6-1/2/3/4, UN38.3 |
Figures from the Fox ESS CQ7 Australian datasheet (V1.2, May 2026). Specifications vary by model — we'll confirm the exact configuration in your quote.
Why this brand
Why we install Fox ESS in Melbourne homes
-
The specs stack up for the money
Fox ESS sits in the value tier on price but not on specification — 100% usable capacity, high-voltage architecture and LFP chemistry are things you'd normally pay premium-brand money for. That shortens the payback period, because more of your bill savings go into paying the system off. We'll model your actual payback against your own usage and tariff before you commit to anything.
-
We've installed a lot of them around Melbourne
We know how these systems behave on local tariffs and how to set them up so your solar goes into the battery instead of out to the grid for nothing.
-
We install them properly
This is a popular battery, and popular gear attracts quick installs. We've been called out to plenty of jobs where the equipment is fine and the installation isn't — loose cable runs, gear mounted in full afternoon sun, protection that's the bare minimum. Good hardware doesn't survive a bad install. Ours are done once, done neatly, and done to the standard.
EV charging
Add a Fox ESS EV charger to your system
-
Package pricing
Putting in a battery and inverter? Add a Fox ESS EV charger at the same time and ask us about package pricing. It's cheaper to run the cabling while the switchboard is already open and the installer is already on site.
-

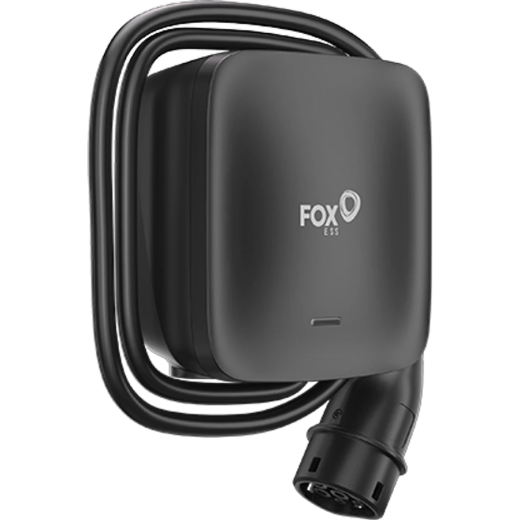

L-Series
7.3kW single-phase (L07P) or 11kW three-phase (L11P). Compact, wall or post mounted, 5m cable standard.
-
A-Series
7.3kW, 11kW or 22kW, plug or socket versions, with dynamic load balancing and OCPP compatibility for anyone who wants the extra control.
-
Charges off your surplus solar
Both series can direct surplus solar straight into the car, with scheduled charging so you can set it to run on your cheapest window.
Charger specifications from Fox ESS L-Series and A-Series datasheets. Available models and cable lengths vary — we'll confirm the right one for your supply and vehicle.
Already got Fox ESS storage
Already have a Fox ESS battery? We'll add the charger
A lot of people have a Fox ESS battery and inverter in good working order, and no working relationship with whoever installed it. Company folded, moved on, stopped answering the phone. It happens constantly.
You don't need to start again. If you already have Fox ESS storage, adding a Fox EV charger turns it into one integrated system — battery, solar and car charging, all managed in the one app, with the charger pulling from your surplus solar instead of the grid. It's the single best addition you can make to a setup you've already paid for.
We'll assess what you've got, tell you honestly whether it's worth adding to, and do the work properly.
How we finish a job
The Revelectrical installation standard
Every Fox ESS job we do is finished the same way. This is the standard, not the upsell.
-
Tidy and professional

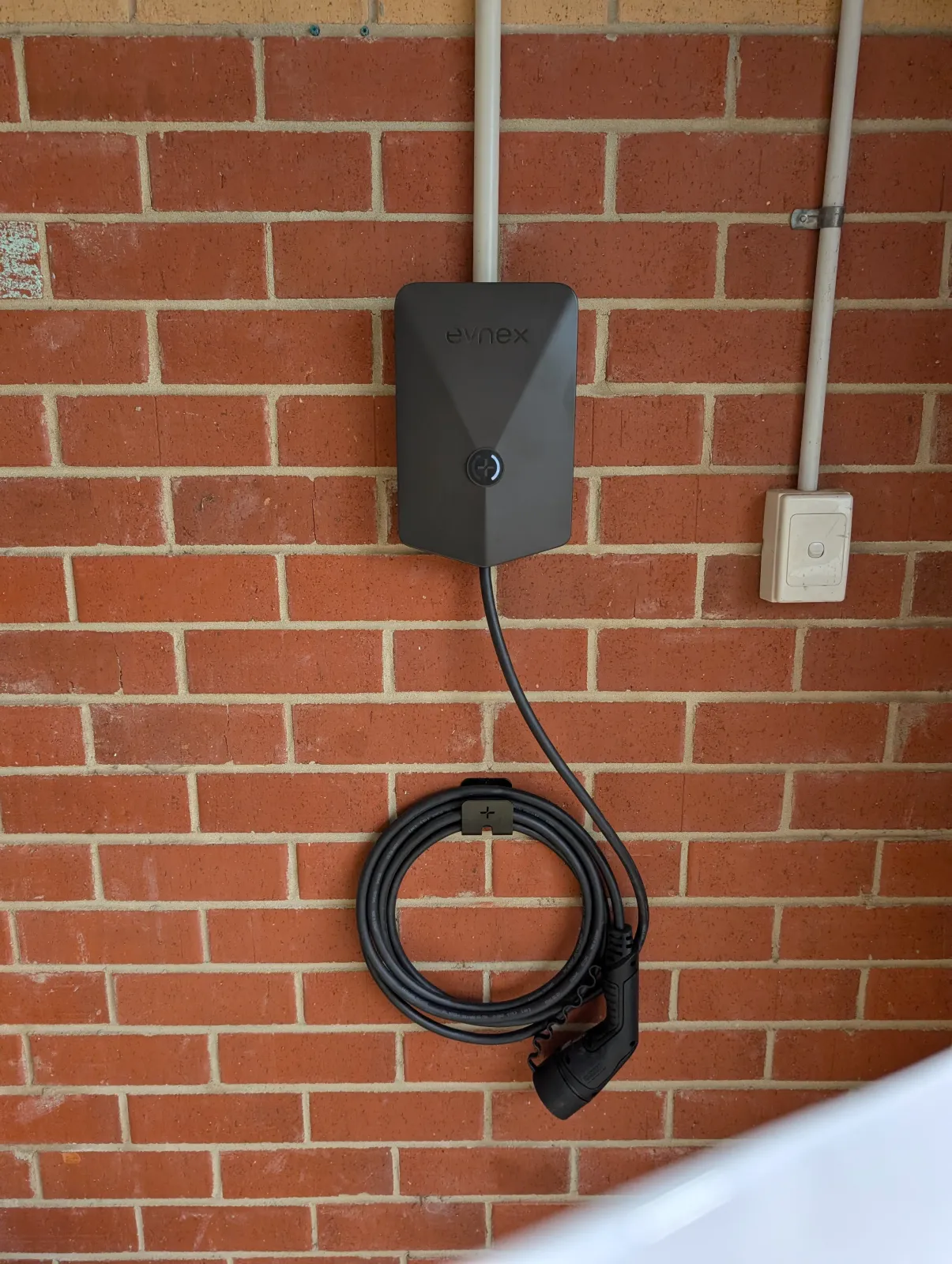

Clean cable routing and neat conduit work, every time. If it's on the front of your house, it should look like it belongs there.
-
Proper electrical protection
High-grade circuit protection sized correctly for the system — not the cheapest device that passes.
-
Designed for the weather
Equipment is positioned and shielded to reduce sun and rain exposure, both for compliance and for longevity. Heat and UV degrade outdoor gear faster than anything else, so where the equipment goes is part of the design, not an afterthought once it's on the wall.
-
Compliant and inspected
Installed to Australian Standards and inspected before sign-off, with a Certificate of Electrical Safety issued on completion.
What our customers say
Chris Peers
6 August 2026
These guys are fantastic! Made a stressful problem easy for me and very reasonable fees.
Prab Pandher
22 July 2026
Excellent install and service by Revelectrical. Arrived on time, very polite and clean install of the EV charger.
Travel with Me
13 July 2026
I highly recommend RevElectrical. Ben installed my Evnex EV charger, and I couldn't be happier with the service. He was professional, friendly, punctual, and completed the installation to a very high standard. His workmanship was excellent, and he took the time to make sure everything was working perfectly before he left. The whole process was smooth and hassle-free.
D H
13 July 2026
The guys at revelectrical did a great installation, we're very happy with their work! They arrived on time, communicated well and helped with understanding the new setup. They're just what the west needs, when it comes to degasification and going electric, they get it!
Justin Fennessy
12 July 2026
We had a charger installed, an Evnex E2 Core for the Atto 2. Superb job, nicely done, even arranged for a plaster hiccup to be fixed same day. Also installed a surge protector in the fuse box to protect all appliances. Both times on time, efficient, good value and great guys, highly recommend.
Our work

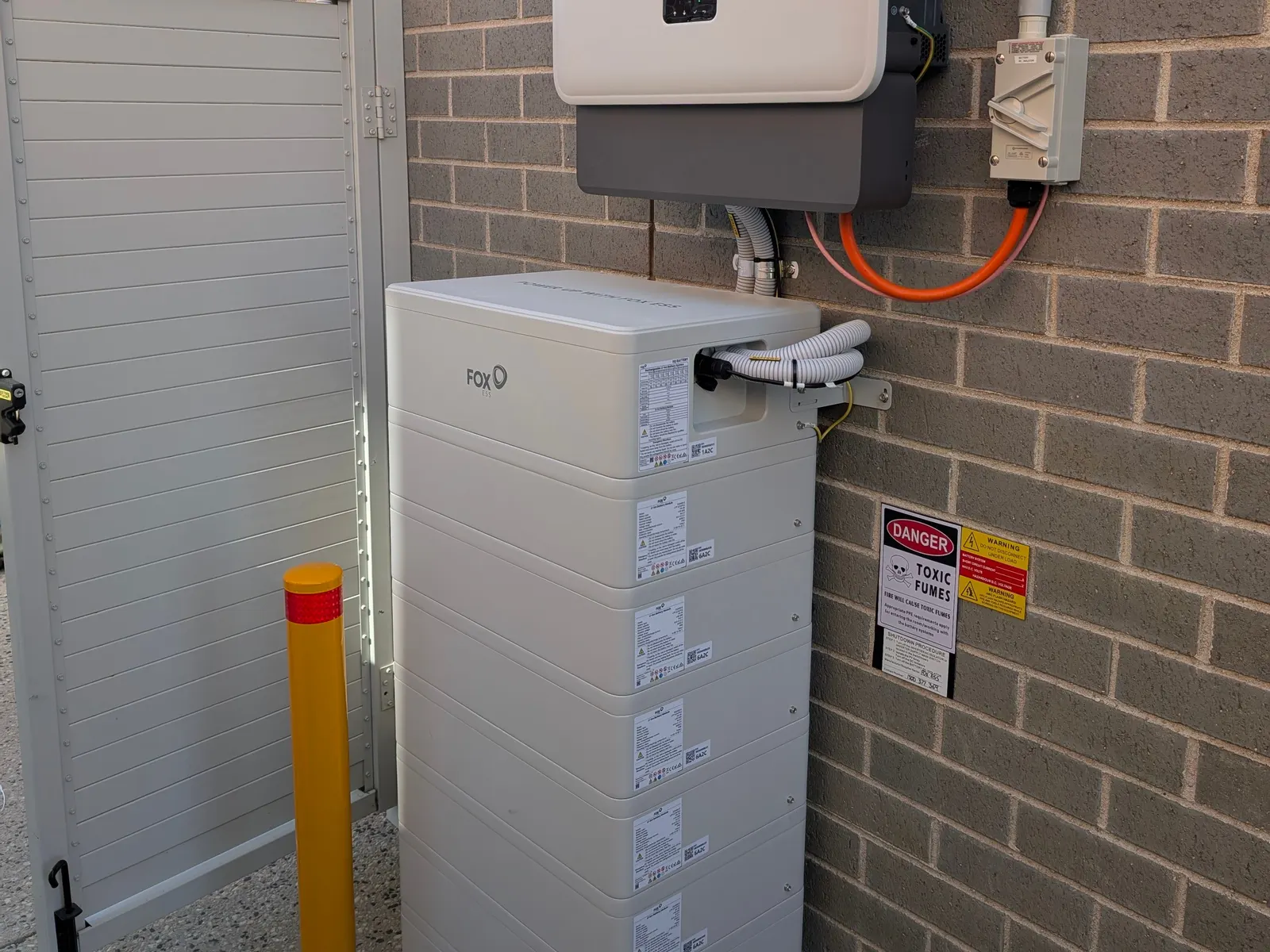

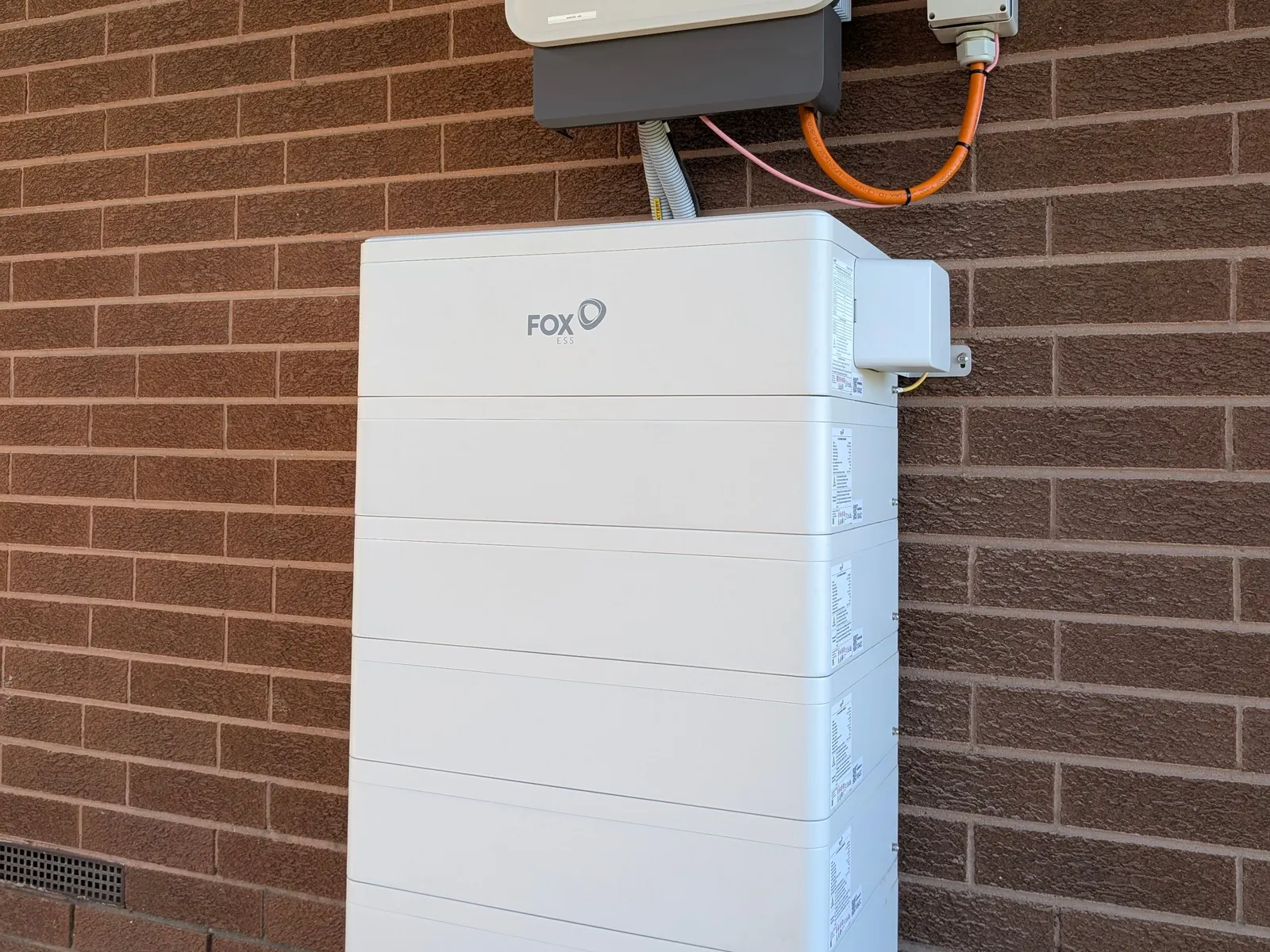

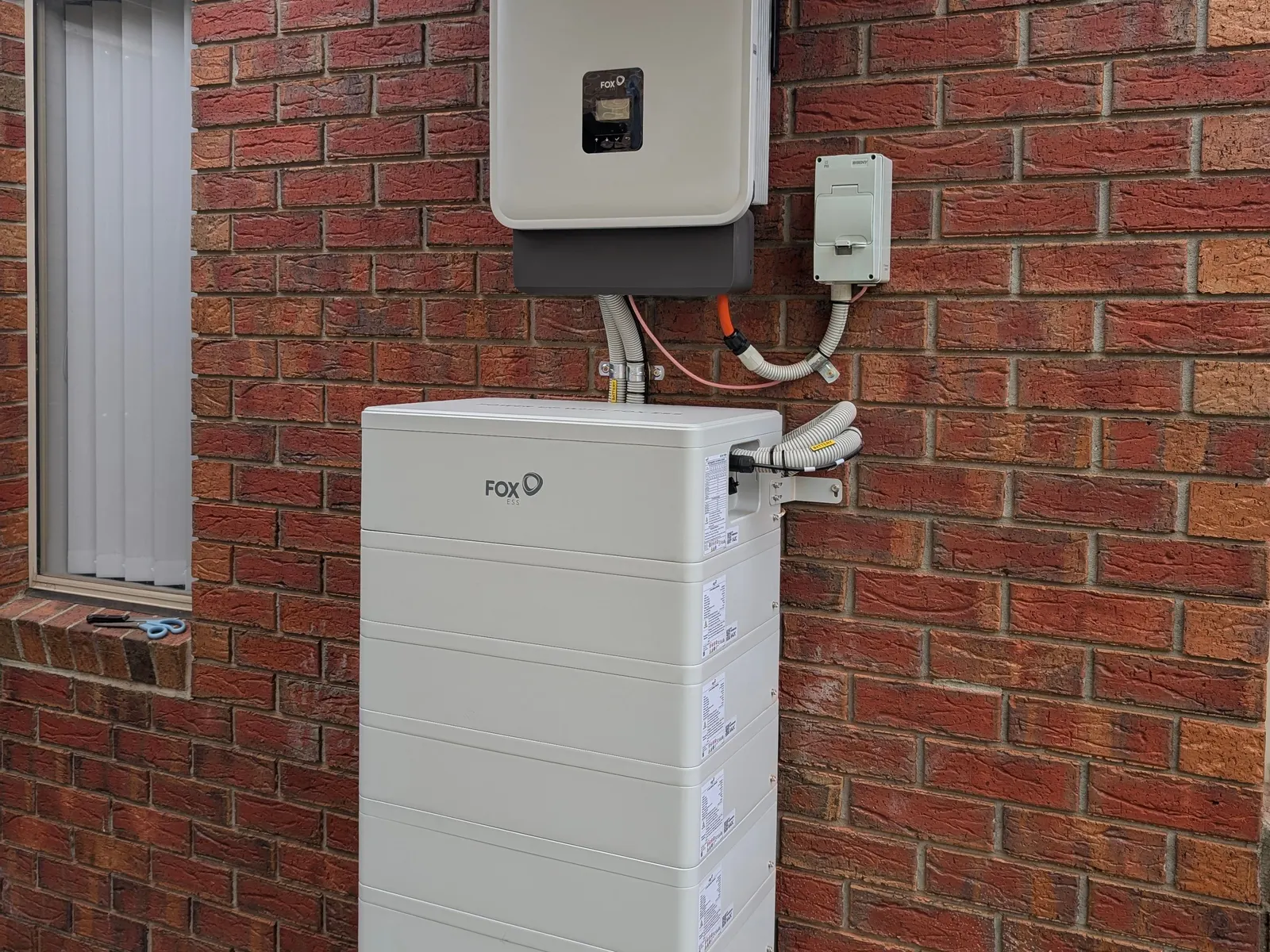

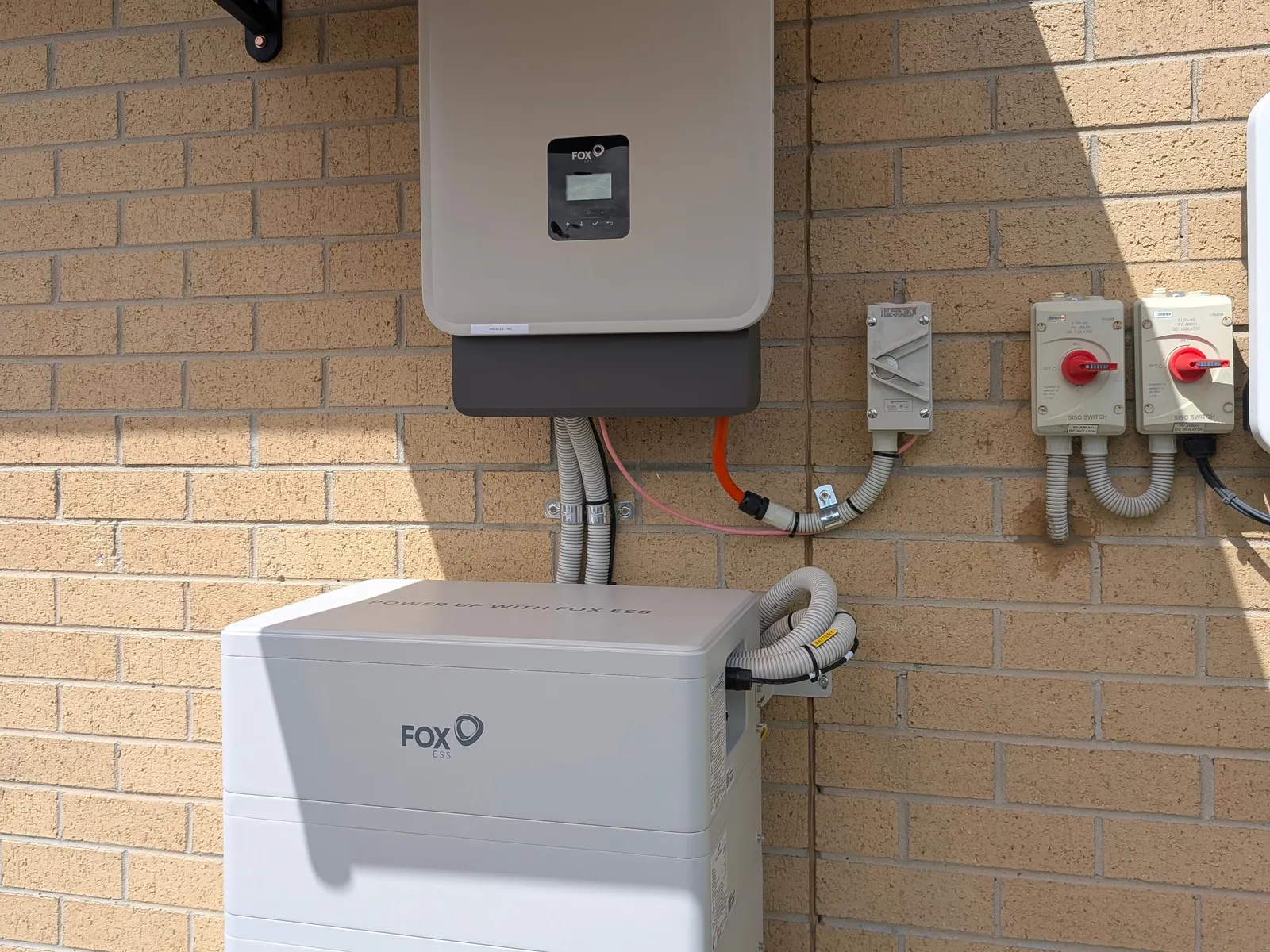

Fox ESS installs we have done
Service areas
Fox ESS across Melbourne.
We cover all areas of Melbourne. Not on the list? Send your postcode with your enquiry and we'll confirm.
- Brunswick3056
- Coburg3058
- Fitzroy3065
- Footscray3011
- Ascot Vale3032
- Kensington3031
- Broadmeadows3047
- Essendon3040
- Moonee Ponds3039
- Newport3015
- Northcote3070
- Braybrook3019
- Williamstown3016
- Epping3076
- Collingwood3066
- Airport West3042
- Sunshine3020
- Thomastown3074
- St Albans3021
- Greenvale3059
- Glenroy3046
- Caroline Springs3023
- North Melbourne3051
- Yarraville3013
Jobs that often come with it
EV charging solutions
Supply and installation of EV charging stations. All major models are available.
More info
Solar battery installation
Save your excess solar to use later in peak tariff periods. Government rebates available.
More info
Switchboard upgrade
Meet safety standards and protect your home from fire and electric shock.
More info
Fox ESS questions we get asked
How much does a Fox ESS battery installation cost?
It depends on the capacity, your switchboard and where the battery goes, which is why we quote per job rather than publishing a number. The battery quote form is the fastest way to a real figure - it asks the questions we would otherwise have to ask on a site visit, and with photos of the board we can usually price it without coming out first.
Can I start small and add more storage later?
Yes, that is the main reason we like the CQ7. It is modular, so you can begin with the capacity you need now and expand it as the household's power needs grow. We size the first stage against your actual usage and leave the switchboard ready for the second, so adding to it later is not a second upheaval.
How does the battery handle a Melbourne winter?
The CQ7 has an integrated heating function, so the unit keeps operating at peak performance on freezing mornings rather than derating when it is cold. That matters more here than the brochures suggest - a battery that slows down in July is a battery that is not earning.
Can I get the EV charger and the battery together?
Yes, and it is usually the cheaper way to do it. Bundle a Fox EV charger with a new battery and inverter installation and we will put a package price on the lot. One visit, one system, one number.
I already have a Fox battery - can you add a charger?
Yes. We can integrate a Fox EV charger straight into your existing setup so the battery, the inverter and the charger run as one energy ecosystem rather than three things sharing a wall.
Which Fox ESS EV charger do you install?
We fit the L-Series and the A-Series. Which one suits comes down to where the charger is going and how it needs to connect. Charging power, cable length and warranty vary by variant, so we confirm those against the current Fox ESS datasheet when we quote rather than printing a figure that may not match the unit you receive.
Do I have to buy the equipment from you?
No. We are happy to supply and install as one job, or install hardware you have bought yourself. Either way the installation is certified and warranted the same.
Do you install outside Melbourne?
We cover Melbourne and the surrounding suburbs. Check our service areas, or just ask - if we do not cover you we will say so rather than waste your time.
